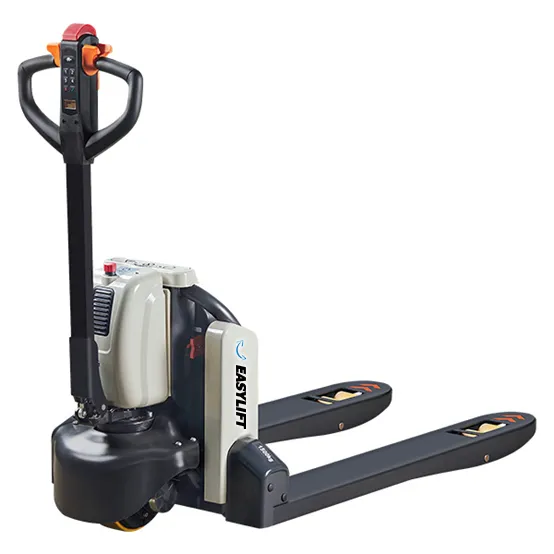

The EWP15/20 SERIES walkie electric pallet truck is a real all-rounder thanks to its versatility.It combines the features of a powered pallet truck with the flexibility of a hand pallet truck. It moves and lifts loads up to 2000 kg all-electrically, making pallet handling tasks easy and increasing your productivity everyday.
With reasonable design and short head length, the electric pallet truck performs in applications ranging from narrow aisle workshop, super market to large-scale distribution operations.
Specifications:
|
Type sheet for EWP15/20 series |
||||||||
|
Model |
EWP15 |
EWP20 |
||||||
|
General Info |
1.1 |
Power |
|
Lithium-ion Battery |
||||
|
1.2 |
Operator type |
|
Pedestrian |
|||||
|
1.3 |
Load Capacity |
Q（kg） |
1500 |
2000 |
||||
|
1.4 |
Load centre distance |
C(mm) |
600 |
|||||
|
1.5 |
Load distance |
x(mm) |
880 |
|||||
|
1.6 |
Wheelbase |
y(mm) |
1128 |
|||||
|
Weight |
2.1 |
Service weight |
kg |
131 |
135.5 |
139 |
143 |
|
|
2.2 |
Axle loading, laden front/rear |
kg |
493/1140 |
497/1142 |
502/1641 |
507/1642 |
||
|
2.3 |
Axle loading, unladen front/rear |
kg |
103/30 |
107/32 |
110/33 |
115/34 |
||
|
Tires, chassis |
3.1 |
Tire |
|
聚氨酯轮(PU) |
||||
|
3.2 |
Drive wheel* Qty |
Φ*w(mm) |
Φ210×75*1 |
|||||
|
3.3 |
Fork wheels*Qty |
Φ*w(mm) |
Φ80×70*4 |
|||||
|
3.4 |
Castor wheels*Qty |
Φ*w(mm) |
Φ80×30*2(Optional) |
|||||
|
3.5 |
Tread, rear |
b11(mm) |
380 |
525 |
380 |
525 |
||
|
Dimensions |
4.1 |
Lifting height |
h3(mm) |
115 |
||||
|
4.2 |
Height of tiller in drive position min./max. |
h14(mm) |
777/1244 |
|||||
|
4.3 |
Height lowered |
h13(mm) |
85 |
|||||
|
4.4 |
Overall length |
l1(mm) |
1553 |
|||||
|
4.5 |
Length to face of forks |
l2(mm) |
403 |
|||||
|
4.6 |
Overall width |
b1(mm) |
550 |
685 |
550 |
685 |
||
|
4.7 |
Fork dimensions |
s/e/l(mm) |
50/160/1150 |
|||||
|
4.8 |
Width across forks |
b5(mm) |
550 |
685 |
550 |
685 |
||
|
4.9 |
Ground clearance, centre of wheelbase |
m2(mm) |
30 |
|||||
|
4.10 |
Aisle width for pallet 800*1200 lengthways |
Ast(mm) |
2013 |
|||||
|
4.11 |
Turning radius |
Wa(mm) |
1400 |
|||||
|
Performance |
5.1 |
Travel speed, laden/ unladen |
km/h |
4.5/5.3 |
5.2/6 |
|||
|
5.2 |
Lift speed, laden/ unladen |
m/s |
0.015/0.022 |
0.016/0.022 |
||||
|
5.3 |
Lowering speed, laden / unladen |
m/s |
0.05/0.026 |
0.052/0.023 |
||||
|
5.4 |
Gradeability, laden/ unladen |
% |
6/16 |
6/16 |
||||
|
5.5 |
Service brake |
|
Electromagnetic |
|||||
|
Motors |
6.1 |
Drive motor rating S2 60min |
kW |
0.75 |
1.0 |
|||
|
6.2 |
Lift motor rating at S3 8% |
kW |
0.50 |
0.8 |
||||
|
6.3 |
Battery voltage, nominal capacity K5 |
V/Ah |
24 V/20Ah |
48 V/20Ah |
||||
|
6.4 |
Battery weight (minimum) |
kg |
5.1 |
7.9 |
||||
|
|
7.1 |
Type of drive control |
|
DC – Speed Control |
||||
|
7.2 |
Sound level as per En12053 |
Db(A) |
69 |
|||||
